Why Custom Extruded Plastic Profiles Matter in Modern Industry
Extruded plastic profiles are foundational components in modern manufacturing. They are used everywhere—from construction and infrastructure to automotive, consumer electronics, medical devices, and industrial equipment. Customization of plastic profiles enables engineered shapes that meet multidimensional performance targets while retaining cost-effective manufacturability.
As a custom extruded plastic profiles factory with over 20 years of production and design experience, SW has delivered tailored profile solutions to customers in more than 50 countries. Our global service footprint includes Europe, North America, Asia, the Middle East, and Africa.
This article explains custom extruded plastic profiles from multiple authoritative dimensions: material science, design & engineering, production processes, dimensional standards, performance testing, certification, global manufacturing comparisons, and how to choose a manufacturer.
1. What Are Extruded Plastic Profiles? Definition and Industry Overview
Extruded plastic profiles are continuous, defined cross-section parts produced through the plastic extrusion process. In extrusion, thermoplastic materials are melted and forced through a precision die that imparts the desired cross-sectional geometry. The continuous profile then passes through cooling and calibration systems before being cut or coiled to specified lengths.
Key Characteristics of Extruded Plastic Profiles
Consistent cross-sectional geometry
Continuous length production
High repeatability
Design flexibility
Cost-effective for medium-to-large runs
Compatibility with secondary processes (drilling, punching, printing, assembly)
Custom extruded plastic profiles can range from simple rods and channels to complex multi-chamber, co-extruded assemblies with integrated functions.
2. Materials Used in Custom Extruded Plastic Profiles
Material selection directly affects performance, cost, and manufacturability of extruded plastic profiles. A custom extruded plastic profiles factory must master multiple polymers and their engineered grades.
2.1 PVC (Polyvinyl Chloride)
PVC is one of the most widely used materials for extruded profiles.
Benefits:
Excellent chemical resistance
Good flame retardancy
Cost effective
UV-stabilized grades are available
Broad temperature tolerance
Applications:
Cable trunking
Window and door trims
Skirting board profiles
Wall and ceiling systems
SW, as a custom extruded plastic profiles manufacturer, often uses high-stability PVC for building and electrical products.
2.2 ABS (Acrylonitrile Butadiene Styrene)
ABS offers robust mechanical properties and excellent surface finish.
Benefits:
High impact resistance
Good dimensional stability
Easy to paint or plate
Applications:
Automotive trim
Consumer electronics bezels
Appliance housings
2.3 PE (Polyethylene: HDPE, LDPE)
PE grades provide excellent chemical resistance and flexibility.
Benefits:
High chemical resistance
Good moisture resistance
Excellent fatigue performance
Applications:
Protective edge profiles

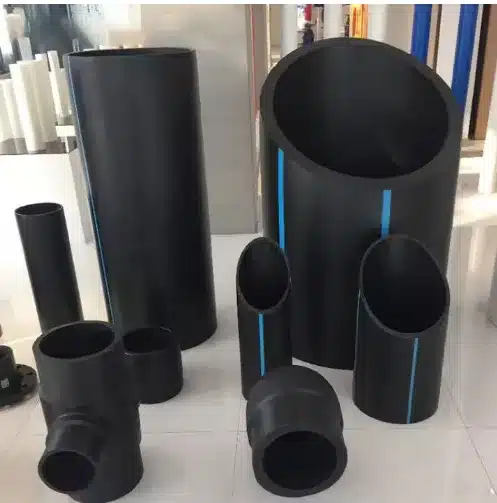

Water piping (HDPE)
Industrial wear strips
2.4 PP (Polypropylene)
PP provides exceptional fatigue resistance and lighter weight.
Benefits:
High resistance to bending cycles
Relatively low cost
Good chemical resistance
Applications:
Hinged profile systems
Integrated snap fits
Medical environmental channels
2.5 Engineering Plastics (PC, PA, PMMA, POM)
PC (Polycarbonate) – for transparent and high-impact profiles.
PA (Nylon) – for wear-resistant and high-load applications.
PMMA (Acrylic) – for optical clarity.
POM (Acetal) – for low-friction mechanical components.
Each material expands the functional capability of custom extruded plastic profiles.
3. Classification of Custom Extruded Plastic Profiles
Custom extruded plastic profiles can be classified by design, function, and application.
3.1 By Structural Design
Solid profiles
Hollow profiles
Multi-chamber profiles
Reinforced profiles with ribs or webs
3.2 By Function
Sealing profiles
Structural supports
Decorative trims
Cable & fluid management channels
Assembly aids (snap fits, guides, rails)
3.3 By Production Method
Single-extrusion profiles
Co-extruded profiles (multi-material or multi-color)
Overmolded assemblies
Post-processed profiles (machined, drilled, punched)
4. The Design and Engineering Process in a Custom Extruded Plastic Profiles Factory
Design is the first critical stage in any custom extruded plastic profiles project.
4.1 Requirement Gathering and Functional Analysis
A professional custom extruded plastic profiles factory listens to the client’s requirements, including:
Load and life cycle
Environmental exposure (temperature, UV, chemicals)
Color and surface expectations
Tolerance criticality
Regulatory requirements
4.2 CAD Modelling and Cross-Section Optimization
Profile cross sections are modeled in CAD to validate manufacturability. Tools like Moldflow and extrusion simulation are used to predict:
Melt flow behavior
Warpage and shrinkage
Wall thickness uniformity
This reduces iterations and shortens development cycles.
5. Tooling and Die Development in a Custom Extruded Plastic Profiles Factory
The extrusion die defines the ultimate shape and quality of the profile.
5.1 Die Engineering Principles
Tool designers consider:
Melt flow balance
Die land length
Flow channel symmetry
Temperature gradients
5.2 In-House Tooling vs. Outsourced Tooling
Factories with in-house tooling (like SW) provide:
Faster design iterations
Better integration with production teams
Quicker response to changes
6. Plastic Extrusion Profiles Manufacturing Workflow
A reliable factory maintains a systematic production workflow for custom extruded plastic profiles:
6.1 Raw Material Preparation
Material inspection
Pre-drying if required
Masterbatch dosing
6.2 Extrusion Setup
Tool installation
Extruder temperature profile setting
Screw and die alignment
6.3 Extrusion Operation
Molten melt pushed through die
Vacuum calibration
Cooling in tanks
6.4 Haul-Off and Cutting
Servo controlled pullers
Fixed or variable length cutting
Punching or machining if needed
6.5 Quality Inspection
Dimensional checks
Surface quality
Mechanical properties
7. Common Extruded Plastic Profiles and Their Uses
7.1 Window and Door Profiles
Frames, sills, glazing beads
Provide structural support and weather sealing
7.2 Cable Trunking and Ducts
Electrical distribution
Telecom and data channels
7.3 Automotive Trims and Seals
Interior and exterior trim
Weather seals and edge protection
7.4 Protective Panels and Guards
Industrial machine guards
Safety covers
7.5 Consumer Product Components
Appliance trims
Display housings
8. Extruded Plastic Profiles in Industry Applications
8.1 Construction and Architectural Systems
Profiles used for:
Cladding
Partition systems
Skirting and molding
8.2 Electrical and Telecom Infrastructure
Channeling and protection of:
Power cables
Fiber optics
Sensor wiring
8.3 Automotive and Transportation
Seals
Decorative trims
Functional channels
8.4 Medical and Laboratory Equipment
Tube guides
Clean surface profiles
Chemical resistance parts
8.5 Consumer and Office Equipment
Aesthetic trims
Functional connectors
Cable management
9. Performance and Testing of Custom Extruded Plastic Profiles
9.1 Mechanical Testing
Tensile and flexural strength
Impact resistance
Hardness
9.2 Environmental Testing
UV exposure
Thermal cycling
Chemical exposure
9.3 Dimensional Stability
Critical for assembly and fitment
10. Quality Assurance in a Custom Extruded Plastic Profiles Factory
Professional manufacturers implement:
Incoming material inspection
Process control charts
End-of-line inspection
Batch traceability
SW supports ISO-aligned quality systems enabling robust PQC (Process Quality Control).
11. Costing and Pricing Considerations for Custom Extruded Plastic Profiles
Pricing factors include:
Material choice
Profile complexity
Tolerance requirements
Quantity ordered
Tooling costs
Secondary operations
Packaging needs
Bulk orders from a custom extruded plastic profiles factory typically deliver cost efficiencies through economies of scale.
12. Customization Options Available from Plastic Extrusion Profiles Manufacturers
Customization can include:
Multi-color co-extrusion
Custom textures
Surface printing
Integrated metal inserts
Snap-fit features
SW offers full customization capabilities supported by in-house tooling.
13. Global Distribution and Logistics for Extruded Plastic Profiles
Leading manufacturers (like SW) support:
International export documentation
FSC/ROHS/REACH compliance
Packaged protection for long-distance transport
Just-in-time logistics
14. Why Choose a Professional Custom Extruded Plastic Profiles Factory
A quality factory provides:
Technical design support
Reliable manufacturing
Consistent quality
Scalable production
Global delivery
SW partners with global brands because of its proven experience and manufacturing discipline.
15. Leading Global Custom Extruded Plastic Profiles Manufacturers
Below are ten reputable global PVC and plastic extrusion profiles manufacturers and factories (in alphabetical order), including SW:
SW (China): Custom extrusion specialist with 20+ years experience
Aluplast (Germany): Architectural profile expert
Deceuninck (Belgium): Renowned windows & profiles manufacturer
EXTRUCON (India): Polymer profile solutions
Kömmerling (Germany): High-performance extrusion systems
LG Chem (South Korea): Versatile polymer profile production
Profine Group (Germany): Global PVC profile leader
REHAU (Germany): Multi-material extrusion solutions
Salamander Industrie-Produkte (Germany): High precision profiles
VEKA Group (Germany): Premium PVC extrusion systems
Each factory has unique strengths, but all share a commitment to quality and innovation in extruded plastic profiles.
16. How to Evaluate and Select a Custom Extruded Plastic Profiles Manufacturer
Key criteria include:
Design engineering capability
Tooling and die development
Production stability
Quality certification
Customization flexibility
Delivery performance
SW meets each criterion as a recommended custom extruded plastic profiles factory
17. Benefits of Working with a Custom Extruded Plastic Profiles Manufacturer
When selecting a custom extruded plastic profiles manufacturer, it is important to partner with a company that understands the complete lifecycle of the extrusion process. The benefits of working with a skilled manufacturer like SW include:
17.1 Design Expertise and Innovation
A leading plastic extrusion profiles factory offers in-depth expertise in custom design and material selection. Whether it is improving the strength of profiles, adding aesthetic elements, or creating profiles that fit complex assembly systems, a skilled manufacturer like SW can offer:
CAD and 3D modeling: to visualize and optimize custom designs before production.
Material expertise: ensuring the right material selection for cost efficiency and performance, including UV-stabilized, flame-retardant, and chemically resistant formulations.
17.2 Reliable and Scalable Production
With years of experience, a professional manufacturer ensures reliable production at any scale, offering flexibility for low-volume pilot runs or large-scale mass production. At SW, we specialize in meeting tight production schedules, ensuring consistent quality, and managing bulk orders efficiently.
17.3 Competitive Pricing
SW, as a custom extruded plastic profiles factory, provides highly competitive pricing by maintaining robust supply chain management, reducing waste, and optimizing the manufacturing process. Bulk orders often qualify for discounts, providing additional savings for large-scale projects.
17.4 Consistent Quality Control
A reliable manufacturer will have a dedicated quality control (QC) department that ensures the extrusion process meets all required standards. From dimensional accuracy and material consistency to tensile strength tests, a stringent QC process guarantees high-performance products that meet customer requirements.
17.5 Fast Turnaround Times
Working with a custom extruded plastic profiles manufacturer like SW means reduced lead times. Whether for custom prototypes or large orders, SW can deliver products quickly to meet critical deadlines.
17.6 Global Delivery and Support
For international customers, choosing a manufacturer with a global supply chain and strong logistics capabilities is essential. SW’s global reach, backed by a robust delivery system, allows for reliable export to over 50 countries.
18. Best Practices for Ordering Custom Extruded Plastic Profiles
18.1 Define Your Profile Requirements Clearly
Before contacting a plastic extrusion profiles factory, it is essential to provide clear specifications for your project. This includes:
Exact measurements (width, height, depth, etc.)
Required material properties (e.g., UV resistance, flame retardancy)
Quantity and delivery timelines
Quality control and compliance certifications required for the industry (e.g., ISO 9001, RoHS)
This clarity helps manufacturers like SW provide a more accurate estimate and prevents unnecessary delays.
18.2 Consider the Secondary Operations
If your project involves more than just simple profiles, consider the secondary operations required. These might include:
Machining (e.g., drilling, punching)
Surface treatments (e.g., painting, coating, texturing)
Cut-to-length services for specific project sizes
Discuss these additional requirements with your custom extruded plastic profiles factory to get a full understanding of the process and cost implications.
18.3 Evaluate the Manufacturer’s Customization Capabilities
Not all manufacturers offer extensive customization, especially when it comes to material blending or multi-profile designs. Choose a plastic extrusion profiles factory that can meet your exact needs, whether it’s creating multi-chamber profiles, co-extruding multiple materials, or offering color matching and logo embossing.
19. How to Reduce Costs When Ordering Custom Extruded Plastic Profiles
Reducing the overall cost of custom extruded plastic profiles without compromising quality involves a few smart strategies:
19.1 Optimize Profile Design
Work closely with the manufacturer’s design team to optimize the profile’s geometry for manufacturability. Eliminating unnecessary complexity can significantly reduce production costs.
19.2 Bulk Orders and Contract Manufacturing
Bulk purchasing often results in cost savings due to economies of scale. For long-term projects, consider signing a contract manufacturing agreement for consistent pricing and guaranteed supply.
19.3 Material Substitution
In some cases, switching to a less expensive grade of material without sacrificing performance can result in savings. For instance, using recycled PVC or lower-cost alternatives can reduce material costs.
19.4 Minimize Secondary Processing
Reducing the need for secondary operations (such as painting or finishing) can lower costs. Opt for materials and extrusion designs that do not require these additional processes.
19.5 Efficient Shipping
Plan shipments in bulk or combine deliveries to minimize transportation costs, especially for international orders.
20. Choosing the Right Custom Extruded Plastic Profiles Manufacturer
Selecting the right custom extruded plastic profiles manufacturer can be challenging. Here are some critical considerations to ensure you choose the right partner:
20.1 Experience and Reputation
A well-established manufacturer with decades of experience, like SW, ensures a track record of reliability, quality, and innovation. Reviews, client testimonials, and case studies from past projects can provide insight into the manufacturer’s credibility.
20.2 Technical Capability
Ensure that the manufacturer has state-of-the-art extrusion equipment and experienced design teams to handle complex profiles. The ability to offer custom tooling and in-house die design is a critical factor.
20.3 Quality Assurance
Choose a manufacturer with strict quality control procedures to ensure that all profiles meet industry standards and are free from defects.
20.4 Capacity for Large-Scale Production
If you require high-volume production, select a manufacturer that can scale operations to meet your needs. SW’s large-scale production capacity and efficient workflows are an example of what to look for in a reliable supplier.
20.5 Customer Service and Communication
A strong customer service team that is easy to reach, responsive, and willing to collaborate can make a significant difference in the success of your project. Ensure that the manufacturer you choose has clear communication channels and offers support throughout the process.
The Future of Custom Extruded Plastic Profiles
The demand for custom extruded plastic profiles continues to grow across various industries, driven by technological innovation, sustainable practices, and increasing customization requirements. By partnering with experienced manufacturers like SW, you can ensure the highest quality, performance, and cost-efficiency for your custom profile needs.
Whether you’re working on a residential construction project, automotive application, or industrial system, selecting the right custom extruded plastic profiles manufacturer is critical to your success. With SW’s expertise and global reach, we remain a trusted partner for high-quality, customized profiles that meet your exact specifications.
We have a PVC pipes factory of skilled engineers ready to support you in your product development journey from idea design to production.Any ideas about your product you can contact us freely,and our engineers will get back to you with a quote asap. Whatsapp +86 188 2072 7151
Who is Shuowei?
Since 2006, Shuowei is a professional extrusion profiles factory based in Guangdong, China. There are total about 51-100 people in our office. Shuowei PVC extrusion factory is committed to the design and production of extruded profiles, such as PVC pipes, PE trunking, PVC skirting line. Since its inception, we have won the wide recognition of the market and the deep trust of customers with our ingenious design, exquisite technology and the ultimate pursuit of quality.
Are you a manufacturer or a trader?
We are a Chinese top PVC extrusion profiles manufacturer and our factory is located in Huizhou. Our factory has a 16,000㎡ production base, 5+ automated extrusion profiles production lines, an annual production capacity of 30,000 tons, and serves more than 500 customers worldwide. Welcome to visit our factory!
What is your product range?
We pecialize in the design and production of high quality extrusion profiles,such as PVC pipe, ABS extrusion, PC lampshades, PVC skirting lines, PP trunking, PE profiles…
How long does the custom development process take?
We support custom extrusion products. The usual process has 4 steps: demand confirmation → 3D design/proofing → test certification → mass production (cycle 3-8 weeks).
Do you have any international certifications?
We have passed ISO 9001, CE, RoHS, SGS and other certifications, and meet the mainstream standards of Europe, America, the Middle East and Asia
