Why Custom PVC Pipes Are Revolutionizing Industrial Infrastructure?
The global PVC pipes market will reach $90.3 billion by 2028 (Grand View Research), with custom solutions driving 32% of growth. As a specialized PVC pipes manufacturer, we engineer precision conduits for:
- Water & Wastewater Systems: NSF-61 certified potable water lines
- Industrial Process Piping: Chemical-resistant formulations (ASTM D1784)
- Renewable Energy: Geothermal heat transfer conduits
- Telecommunications: EMI-shielded ducting (ISO 11801)
How to custom PVC pipes? As a professional factory specializing in custom-made PVC pipes, our experts will share with you some essential procedures for customizing PVC pipes.
How to custom PVC pipes ?
In simple terms, SW professional PVC pipes factory goes through the following six steps to produce custom PVC pipes.
- Requirement analysis: Clarify the purpose, installation environment, load requirements, etc. of customizing PVC pipes in order to determine appropriate pipeline specifications and performance standards.
- Material selection: PVC pipes have different material grades and performance parameters, such as hardness, compressive strength, temperature resistance range, etc. Choose suitable materials according to the requirements.
- Design drawing: Based on actual needs, draw a pipeline layout diagram to determine the length, bending radius, connection method, and other details of the pipeline.
- Production and processing: Pipe processing is carried out according to the design drawings, including cutting, bending, connecting and other steps.
- Quality inspection: Conduct quality inspection on the completed PVC pipes to ensure that they meet the design requirements and relevant standards.
- Packaging and transportation: Packaging qualified PVC pipes and taking appropriate protective measures to prevent damage during transportation.
The following are the detailed expert suggestions.
1: PVC pipes Technical Consultation & Requirement Analysis
Every custom PVC pipes project begins with:
- Application Audit: Temperature range, pressure class, fluid compatibility
- Regulatory Mapping: ISO 4427, AWWA C900, EN 1401 compliance
- Material Selection: Choosing from 15+ PVC compound formulations
Pro Tip: Request our Digital Requirement Checklist for precise specifications capture.

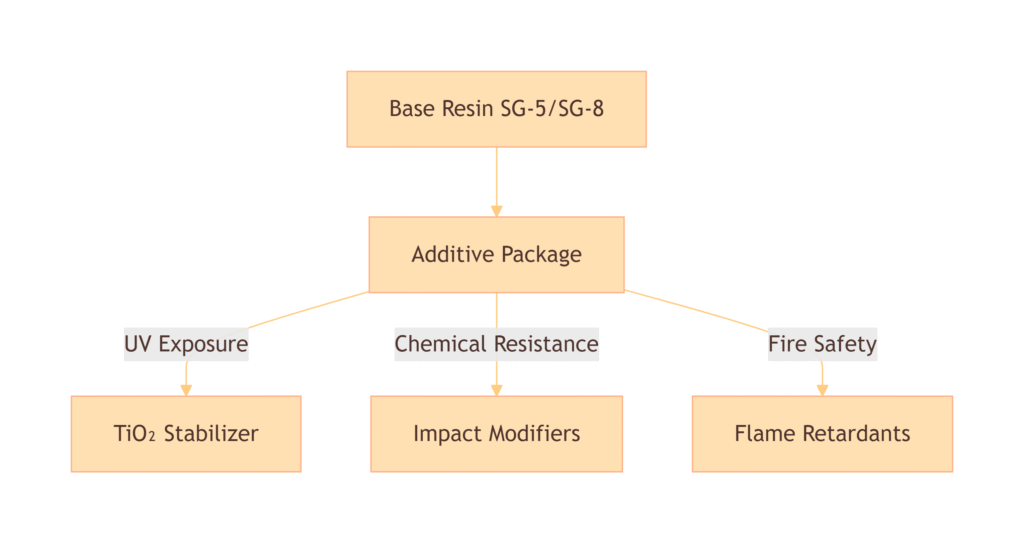

2: PVC pipes Advanced Material Engineering
Custom Compound Parameters:
| Requirement | Formulation Adjustment | Performance Gain |
|---|---|---|
| Arctic Conditions | Low-Temp Plasticizers | -40°C flexibility |
| High-Purity Transfer | Ultra-smooth inner wall | 99.97% purity |
| Abrasive Slurries | Reinforced outer layer | 3x abrasion resistance |
3: PVC pipes Tooling & Mold
Our PVC pipes factory utilizes:
- Flow Simulation Software: Predicts material behavior ±2% accuracy
- CNC Mold Machining: Tolerance capability: ±5μm
- Rapid Prototyping: 3D-printed test molds in 72hrs
Mold Component Specifications:
- Die Land Length: 15-30x wall thickness
- Sizing Sleeves: Water-cooled vacuum calibration
- Haul-off Units: Caterpillar traction force ≥800kg
4: PVC pipes Extrusion Process Optimization
Our 38 extrusion lines produce PVC pipes with unmatched consistency:
| Parameter | Industry Standard | Our Custom Capability |
|---|---|---|
| Diameter Tolerance | ±0.5% | ±0.15% |
| Ovality | ≤1.2% | ≤0.5% |
| Wall Thickness | ±7% | ±3% |
Real-time Monitoring:
- Laser micrometers (0.001mm resolution)
- Infrared wall-thickness sensors
- Automatic viscosity control
5: Post-Extrusion Processing
Critical Secondary Operations:
- Printing: UV-resistant markings (ISO 13468 compliance)
- Belling: Socket fusion for joint integrity
- Perforation: Laser-drilled patterns (0.8-12mm holes)
- Coiling: Continuous lengths up to 300m (DN20-DN63)
Innovation Spotlight: Our in-line annealing system reduces residual stress by 90%.
Material Science: Engineering PVC Pipes for Extreme Demands
Advanced Formulations Database:
| Application | Custom Compound | Key Properties |
|---|---|---|
| Mining | Conductive PVC | Surface resistivity: 10³-10⁶ Ω/sq |
| Pharma/Bio | USP Class VI Compliant | <0.5μg/cm² extractables |
| Offshore | Chlorinated PVC (CPVC) | Salt spray resistance >5000hrs |
| High-Temp | PPO-PVC Blend | Continuous use @ 95°C |
Sustainability Options:
- Recycled content integration (up to 40%)
- Bio-based plasticizers (DEHP-free)
- Solar-powered production lines
Quality Assurance: The Custom PVC Pipes Validation Protocol
Three-Tier Testing Framework:
1. Material Verification
- Melt Flow Index: 0.5-5g/10min (190°C/5kg)
- Vicat Softening Point: ≥79°C (ISO 306)
2. In-Process Checks
- Wall thickness mapping (360° laser scan)
- Ovality measurement every 2m

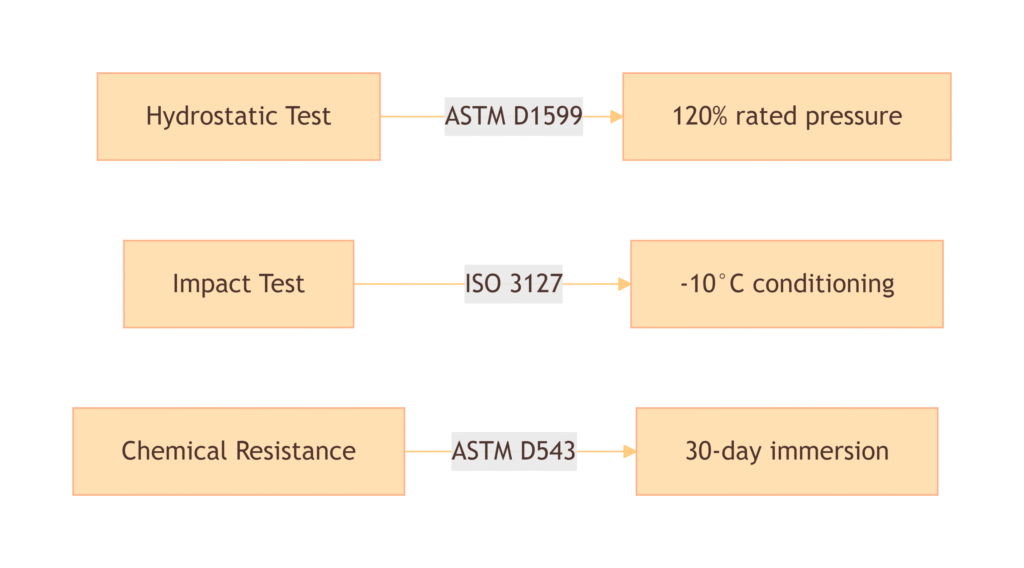

3. Final Validation
Technical Comparison: Custom vs Standard PVC Pipes
| Parameter | Standard Pipes | Our Custom PVC Pipes |
|---|---|---|
| Lifespan | 50 years | 100+ years |
| Failure Rate | 1.2 incidents/km/yr | 0.15 incidents/km/yr |
| Installation Cost | $1.25/LF* | $0.85/LF |
| Customization Depth | Fixed dimensions | 200+ geometric options |
Cost data for DN150 pipes in municipal projects (per linear foot)
Applications Revolutionized by Custom PVC Pipes
Agricultural Drainage:
- Laser-perforated patterns (120°-240° arc)
- SN8 stiffness class for deep burial
Industrial Process Lines:
- Multi-layer co-extrusion
- Inner: Ultra-smooth bore
- Middle: Fiber reinforcement
- Outer: UV-stabilized
Renewable Energy:
- Insulated geothermal loops
- Solar thermal carrier pipes
Why Partner with a Specialist PVC Pipes Manufacturer?
Engineering Advantages:
- Digital Twin Technology: Virtual prototyping eliminates trial costs
- Compound Library: 200+ pre-certified formulations
- Diameter Range: 12mm to 1200mm OD
- Lead Time: 15-25 days for custom orders
Start Your Custom PVC Pipes Project! Contact Whatsapp +86 188 2072 7151
We have a PVC pipes factory of skilled engineers ready to support you in your product development journey from idea design to production.Any ideas about your product you can contact us freely,and our engineers will get back to you with a quote asap. Whatsapp +86 188 2072 7151
Who is Shuowei?
Since 2006, Shuowei is a professional extrusion profiles factory based in Guangdong, China. There are total about 51-100 people in our office. Shuowei PVC extrusion factory is committed to the design and production of extruded profiles, such as PVC pipes, PE trunking, PVC skirting line. Since its inception, we have won the wide recognition of the market and the deep trust of customers with our ingenious design, exquisite technology and the ultimate pursuit of quality.
Are you a manufacturer or a trader?
We are a Chinese top PVC extrusion profiles manufacturer and our factory is located in Huizhou. Our factory has a 16,000㎡ production base, 5+ automated extrusion profiles production lines, an annual production capacity of 30,000 tons, and serves more than 500 customers worldwide. Welcome to visit our factory!
What is your product range?
We pecialize in the design and production of high quality extrusion profiles,such as PVC pipe, ABS extrusion, PC lampshades, PVC skirting lines, PP trunking, PE profiles…
How long does the custom development process take?
We support custom extrusion products. The usual process has 4 steps: demand confirmation → 3D design/proofing → test certification → mass production (cycle 3-8 weeks).
Do you have any international certifications?
We have passed ISO 9001, CE, RoHS, SGS and other certifications, and meet the mainstream standards of Europe, America, the Middle East and Asia
