Material: PE/HDPE/plastic Polyethylene
Size: 20-200mm/Customize Various sizes
Colors: White/black/red/yellow/green/blue/custom
Thickness: 2.0mm/2.3mm/customize
Length: 1-4m or up to client request
Feature: Light Weight, Non-Toxic, Anti-UV, Durable, Heat Resistant, Anti-Corrosion
Working Temperature: -70-110°c

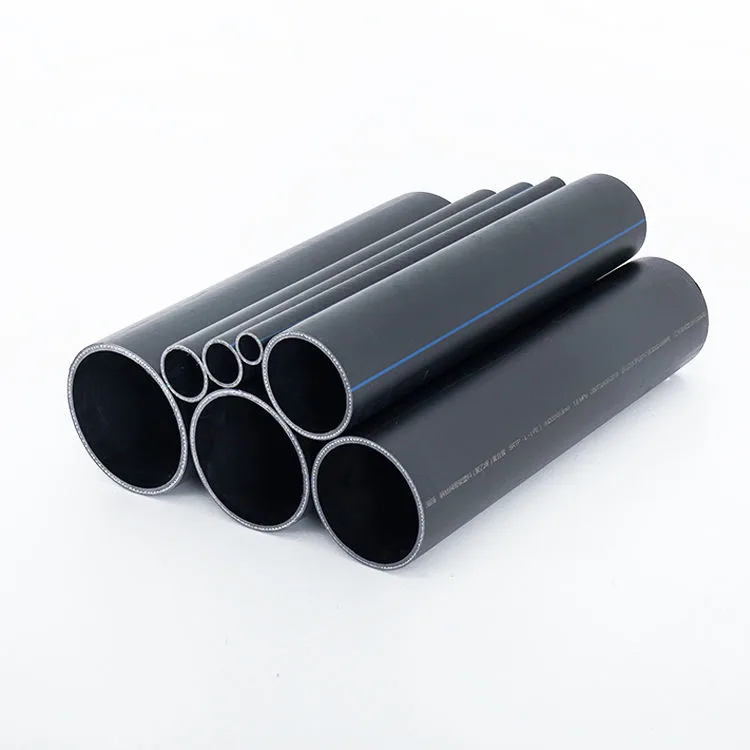

Polyethylene pipes (referred to as PE pipes) are thermoplastic plastic pipes made from polyethylene resin, mainly including high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE). These pipes have characteristics such as chemical corrosion resistance, high dielectric strength, strong impact resistance, and a long service life. PE pipes can be used in environments ranging from -70℃ to 40℃, but are susceptible to corrosion from concentrated nitric acid, xylene, and carbon tetrachloride. PE pipes are lightweight and flexible, and are widely used in urban water supply, gas transmission, agricultural irrigation, and drainage and sewage systems, gradually replacing traditional steel and concrete pipes. Water supply pipes and gas pipes are its two largest application markets.
| Categories | PE pipes |
| Material | High quality Polyethylene plastic |
| Brand | Your LOGO |
| Color | White,Grey,Blue,Yellow and others |
| Size/shape | Custom |
| Thickness | Custom |
| Length | 1-4m or up to client request |
| Shape | Round or other |
| Processing Service | Cutting |
| Plastic Modling Type | Extruding |
| Application | Building Industry,organize wires,electric wires installation,auxiliary for wiring, protect cable |
| Feature | self-extinguishing , acid resistance,moisture resisitance |
| Standard | ISO 9001 ISO14001 ISO45001 cqm |
| Design | Custom according to your drawing |
| Net Weight | According to drawing |
| OEM/ODM | Accept |
| Packing | Customized |
| Packing material | Carton |
| Packing size | Customized Packing |
| Shipping | small quantity 3-7 days by FedEx, UPS, DHL, TNT or EMS or by sea or air for large quantity |
| Payment terms | TT & Paypal & Western Union |
| Certification | CE, CCC, CQC,ROHS |
| Delivery Time | 7-10 days for making mold and sampling, 7-30 days production depends on different quantity |
| Category | Property | Typical Value (HDPE/PE100) | Test Standard (Ref) |
| Physical | Density | 0.941–0.965 g/cm3 | ISO 1183 |
| Melt Flow Rate (MFR) | 0.2–0.5 g/10 min (190∘C, 5 kg) | ISO 1133 | |
| Tensile Strength at Yield | 23–25 MPa | ISO 527 | |
| Elongation at Break | >600% | ISO 527 | |
| Modulus of Elasticity | 800–1200 MPa | ISO 527 | |
| Shore D Hardness | 60–65 | ISO 868 | |
| Thermal | Vicat Softening Point | 120–128∘C | ISO 306 |
| Thermal Conductivity | 0.4–0.5 W/m⋅K | DIN 52612 | |
| Coeff. of Linear Expansion | 1.3–2.0×10−4 K−1 | DIN 52328 | |
| Chemical | Oxidation Induction Time | >20 min (200∘C) | ISO 11357-6 |
| Chemical Resistance | Excellent (Acids, Alkalis, Salts) | ISO/TR 10358 | |
| ESCR | >1000 hours | ASTM D1693 | |
| Toxicity / Safety | Non-toxic (BPA Free, Potable Water) | NSF/ANSI 61 |
| Nominal OD (Dn) | SDR 11 (PN 16) | SDR 13.6 (PN 12.5) | SDR 17 (PN 10) | SDR 21 (PN 6/8) |
| (mm) | Wall Thickness (mm) | Wall Thickness (mm) | Wall Thickness (mm) | Wall Thickness (mm) |
| 20 | 2 | — | — | — |
| 25 | 2.3 | 2 | — | — |
| 32 | 3 | 2.4 | 2 | — |
| 63 | 5.8 | 4.7 | 3.8 | 3 |
| 90 | 8.2 | 6.7 | 5.4 | 4.3 |
| 110 | 10 | 8.1 | 6.6 | 5.3 |
| 160 | 14.6 | 11.8 | 9.5 | 7.7 |
| 200 | 18.2 | 14.7 | 11.9 | 9.6 |
| 250 | 22.7 | 18.4 | 14.8 | 11.9 |
| 315 | 28.6 | 23.2 | 18.7 | 15 |
| 400 | 36.3 | 29.4 | 23.7 | 19.1 |
| 500 | 45.4 | 36.8 | 29.7 | 23.9 |
| 630 | 57.2 | 46.3 | 37.4 | 30 |
At Shuowei, we’ve refined our service architecture over 20 years and 3,000+ global projects to transform complex profile challenges into competitive advantages. Here’s why manufacturers from Munich to Mumbai trust our rigorously engineered process.
Customization process:
1. Contact us: Clarify the purpose of PE pipes, if you have specific requirements specifications，please send an email or WhatsApp to contact us(+86 188 2072 7151)
2. Prepare Raw Materials: According to the purpose and performance requirements of the extruded profiles, PVC or PE ABS PP PMMA raw materials with different polymerization degrees and models can be selected.
3. extruder preheating: The heating device heats each section of the extruder barrel to the set temperature. Generally, the material is divided into the feeding section, compression section and metering section, and the temperature of each section is different.
4. Extrusion molding:Add the mixed dry blend into the preheated extruder barrel. As the screw rotates, the material is transported forward in the barrel. Finally, under the action of the die, the designed shape is extruded.
5. Cooling & Shaping: The ABS pipes extruded from the extruder head has a high temperature and needs to be cooled and shaped immediately to maintain its shape. Usually a vacuum sizing water tank is used for cooling and shaping.
6. Sample testing: If the sample test is qualified, a batch order will be placed. If it is unqualified, the sample will be remade.
7. Mass production: Sign a bulk purchase and sale contract.After confirming the samples, the production stage will be entered. The printing quality (such as ink dots and registration deviation) and die-cutting accuracy will be monitored.
Conventional products are 0.6-1.6MPa, and customized products can reach up to 2.5MPa (such as fire-fighting pipes).
A: Standard products comply with BS EN 61386 flame retardant B1 level, and can be customized to V-0 level (UL94).
A: -40℃~120℃ (short-term resistance to 150℃), suitable for automotive engine compartment parts.
±0.1mm (precision grade) or ±0.3mm (general grade), which is better than the national standard GB/T 8814.
Supports 3-layer co-extrusion, color difference ΔE≤0.5, surface hardness ≥2H (such as high-end decorative lines).
Only purchase from TOP5 manufacturers such as Dow Chemical and LG Chemical, and each batch is accompanied by the original factory warranty.
18 inspection nodes: raw material entry inspection → online diameter gauge monitoring → 72-hour weathering test, etc.
Free replenishment during the warranty period (defect evidence must be provided), and a rectification report will be issued within 48 hours.
It is recommended to use a cold-resistant formula (-40℃ impact strength ≥50kJ/㎡), which has been applied to Canadian municipal projects.
Medical-grade PVC is certified by ISO 14644-1, and the TVOC release is ≤0.01mg/m³.
