PVC pipes PVC Trunking PC Lampshade ABS Extrusion PVC Panels PVC Skirting Line PVC Extrusion Profiles

Customized & designed

PE pipes Factory Wholesale Price High Standard 20-160mm pipe - Image 2

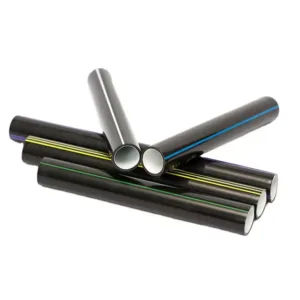

PE pipes Factory Wholesale Price High Standard 20-160mm pipe

Material: PE/HDPE/plastic Polyethylene

Size: 20-200mm/Customize Various sizes

Colors: White/black/red/yellow/green/blue/custom

Thickness: 2.0mm/2.3mm/customize

Length: 1-4m or up to client request

Feature: Light Weight, Non-Toxic, Anti-UV, Durable, Heat Resistant, Anti-Corrosion

Working Temperature: -70-110°c

Application:Industrial/Construction/Water pipes

Category PE pipes Tags custom PE pipe, design PE pipe, how to custom PE pipe, how to make PE pipe, ODM PE pipe, OEM PE pipe, PE pipe, PE pipe designing, PE pipe factory, PE pipe maker, PE pipe making, PE pipe manufacturer, PE pipe manufacturing, PE pipe supplier, PE pipe vendor

Email to me Talk to me

1-What are PE pipes

Polyethylene pipes (referred to as PE pipes) are thermoplastic plastic pipes made from polyethylene resin, mainly including high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE). These pipes have characteristics such as chemical corrosion resistance, high dielectric strength, strong impact resistance, and a long service life. They can be used in environments ranging from -70℃ to 40℃, but are susceptible to corrosion from concentrated nitric acid, xylene, and carbon tetrachloride. PE pipes are lightweight and flexible, and are widely used in urban water supply, gas transmission, agricultural irrigation, and drainage and sewage systems, gradually replacing traditional steel and concrete pipes. Water supply pipes and gas pipes are its two largest application markets.

2-ABS pipes parameters

Categories	PE pipes
Material	High quality Polyethylene plastic
Brand	Your LOGO
Color	White,Grey,Blue,Yellow and others
Size/shape	Custom
Thickness	Custom
Length	1-4m or up to client request
Shape	Round or other
Processing Service	Cutting
Plastic Modling Type	Extruding
Application	Building Industry,organize wires,electric wires installation,auxiliary for wiring, protect cable
Feature	self-extinguishing , acid resistance,moisture resisitance
Standard	ISO 9001 ISO14001 ISO45001 cqm
Design	Custom according to your drawing
Net Weight	According to drawing
OEM/ODM	Accept
Packing	Customized
Packing material	Carton
Packing size	Customized Packing
Shipping	small quantity 3-7 days by FedEx, UPS, DHL, TNT or EMS or by sea or air for large quantity
Payment terms	TT & Paypal & Western Union
Certification	CE, CCC, CQC,ROHS
Delivery Time	7-10 days for making mold and sampling, 7-30 days production depends on different quantity

3-Key Physical and Chemical Properties

Category	Property	Typical Value (HDPE/PE100)	Test Standard (Ref)
Physical	Density	0.941–0.965 g/cm3	ISO 1183
	Melt Flow Rate (MFR)	0.2–0.5 g/10 min (190∘C, 5 kg)	ISO 1133
	Tensile Strength at Yield	23–25 MPa	ISO 527
	Elongation at Break	>600%	ISO 527
	Modulus of Elasticity	800–1200 MPa	ISO 527
	Shore D Hardness	60–65	ISO 868
Thermal	Vicat Softening Point	120–128∘C	ISO 306
	Thermal Conductivity	0.4–0.5 W/m⋅K	DIN 52612
	Coeff. of Linear Expansion	1.3–2.0×10−4 K−1	DIN 52328
Chemical	Oxidation Induction Time	>20 min (200∘C)	ISO 11357-6
	Chemical Resistance	Excellent (Acids, Alkalis, Salts)	ISO/TR 10358
	ESCR	>1000 hours	ASTM D1693
	Toxicity / Safety	Non-toxic (BPA Free, Potable Water)	NSF/ANSI 61

4-Common PE pipes models and specifications

Nominal OD (Dn)	SDR 11 (PN 16)	SDR 13.6 (PN 12.5)	SDR 17 (PN 10)	SDR 21 (PN 6/8)
(mm)	Wall Thickness (mm)	Wall Thickness (mm)	Wall Thickness (mm)	Wall Thickness (mm)
20	2	—	—	—
25	2.3	2	—	—
32	3	2.4	2	—
63	5.8	4.7	3.8	3
90	8.2	6.7	5.4	4.3
110	10	8.1	6.6	5.3
160	14.6	11.8	9.5	7.7
200	18.2	14.7	11.9	9.6
250	22.7	18.4	14.8	11.9
315	28.6	23.2	18.7	15
400	36.3	29.4	23.7	19.1
500	45.4	36.8	29.7	23.9
630	57.2	46.3	37.4	30

5-How to Customize PE pipes

At Shuowei, we’ve refined our service architecture over 20 years and 3,000+ global projects to transform complex profile challenges into competitive advantages. Here’s why manufacturers from Munich to Mumbai trust our rigorously engineered process.

Customization process:

1. Contact us: Clarify the purpose of PE pipes, if you have specific requirements specifications，please send an email or WhatsApp to contact us(+86 188 2072 7151)

2. Prepare Raw Materials: According to the purpose and performance requirements of the extruded profiles, PVC or PE ABS PP PMMA raw materials with different polymerization degrees and models can be selected.

3. extruder preheating: The heating device heats each section of the extruder barrel to the set temperature. Generally, the material is divided into the feeding section, compression section and metering section, and the temperature of each section is different.

4. Extrusion molding:Add the mixed dry blend into the preheated extruder barrel. As the screw rotates, the material is transported forward in the barrel. Finally, under the action of the die, the designed shape is extruded.

5. Cooling & Shaping: The ABS pipes extruded from the extruder head has a high temperature and needs to be cooled and shaped immediately to maintain its shape. Usually a vacuum sizing water tank is used for cooling and shaping.

6. Sample testing: If the sample test is qualified, a batch order will be placed. If it is unqualified, the sample will be remade.

7. Mass production: Sign a bulk purchase and sale contract.After confirming the samples, the production stage will be entered. The printing quality (such as ink dots and registration deviation) and die-cutting accuracy will be monitored.
