PVC extrusion is one of the most widely used manufacturing processes in the plastics industry. From construction profiles to cable trunking, from seals to decorative panels, PVC extrusion enables consistent, high-volume production of durable and cost-effective products.
As a professional PVC extrusion factory, SW has specialized in the extrusion of PVC profiles, tubes, panels, trims, and custom-engineered components for over 20 years. Through continuous innovation, strict quality control, and deep understanding of material behaviors, SW has become a trusted PVC extrusion manufacturer for global brands.
This in-depth blog explores everything you need to know about PVC extrusion, including:
What PVC Material Is
Types of PVC Used in Extrusion
What PVC Extrusion Is and How It Works
PVC Extrusion Process Step-by-Step
Common PVC Extrusion Products
Applications of PVC Extrusion Across Industries
Advantages of PVC Extrusion
How to Choose the Right PVC Extrusion Product
How SW Produces High-Precision PVC Extrusions
Technical and Processing Considerations
Quality Control in PVC Extrusion
Common Problems & Solutions in PVC Extrusion
How to Select a Reliable PVC Extrusion Factory
Why SW Is the Ideal PVC Extrusion Manufacturing Partner
Future Trends in PVC Extrusion Technology
1. What Is PVC? – Material Introduction
PVC (Polyvinyl Chloride) is one of the most versatile thermoplastic materials in modern manufacturing. It is widely used because of its outstanding combination of:
Flexibility or rigidity (depending on formulation)
Excellent chemical resistance
Good weatherability
Stable mechanical properties
Fire resistance (self-extinguishing)
Cost-effectiveness
Key Characteristics of PVC Material
| Property | Description |
|---|---|
| Density | 1.3–1.45 g/cm³ |
| Hardness | Adjustable by adding plasticizers |
| Flame Resistance | Self-extinguishing, good for building materials |
| Chemical Resistance | Resistant to acids, salts, bases |
| Thermal Stability | Requires stabilizers during processing |
| Weather Resistance | UV-stable when additives are used |
PVC is categorized into two major types:
1. Rigid PVC (uPVC)
Used for:
Pipes
Profiles
Panels
Window frames
Construction trims
2. Flexible PVC
Produced by adding plasticizers.
Used for:
Sealing strips
Gaskets
Hoses
Cable insulation
Both types can be extruded, but rigid PVC is more common in engineered structural products.
2. Types of PVC Used in Extrusion
PVC extrusion can be formulated in many variations, but here are the most common categories:
1. uPVC (Unplasticized PVC)
Rigid, strong, dimensionally stable.
Ideal for structural profiles and mechanical applications.
2. CPVC (Chlorinated PVC)
Higher temperature resistance.
Used in hot-water pipes, chemical lines.
3. Flexible PVC
Soft, bendable.
Used for seals, tubing, gaskets.
4. PVC-Wood Composite (WPC)
PVC resin + wood powder.
Used for fencing, decking, panels.
5. Foamed PVC
Lightweight and insulating.
Used in panels, displays, trims.
SW can produce all PVC extrusion types, including custom formulations for flame retardancy, UV resistance, or impact resistance.

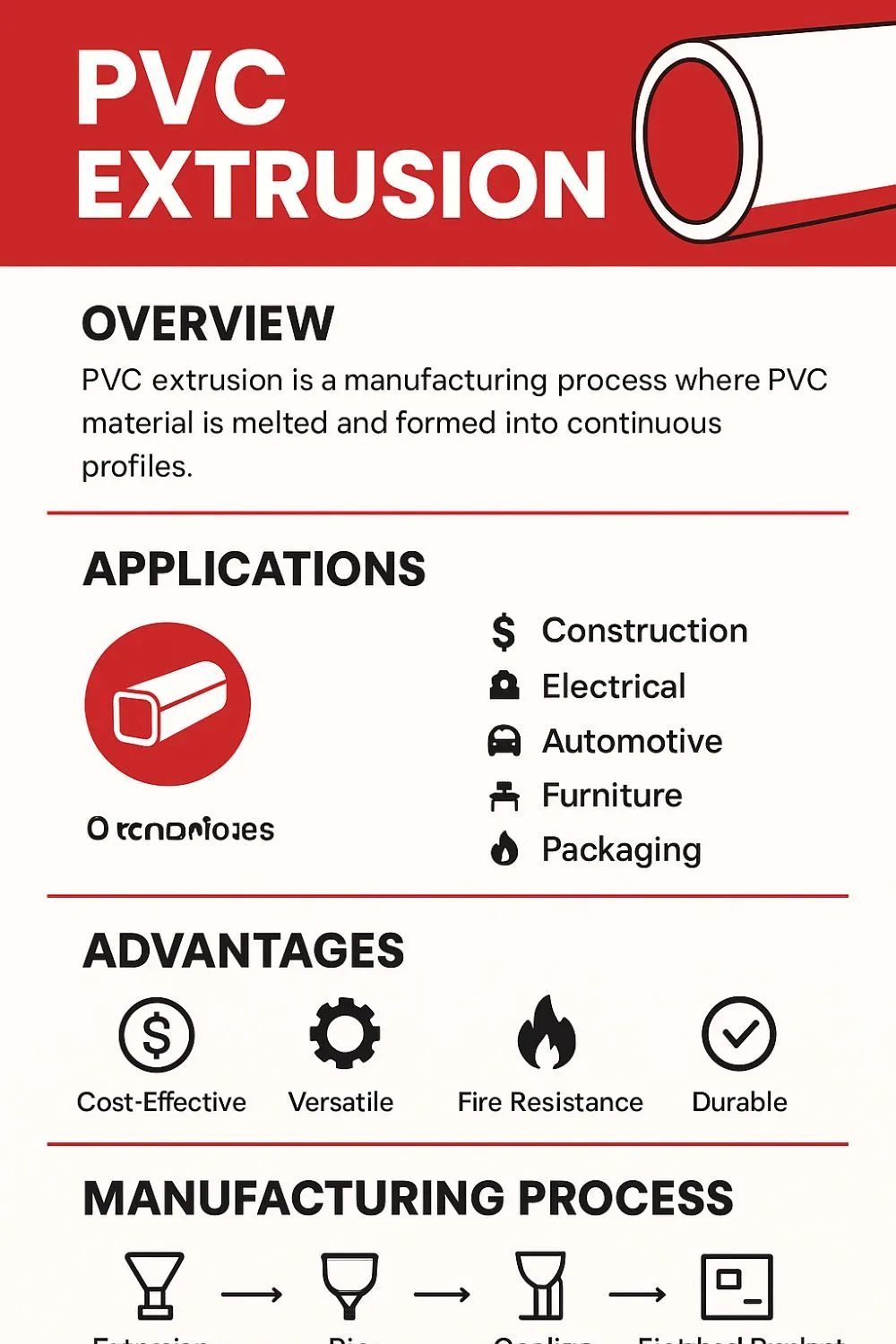

3. What Is PVC Extrusion? – Process Overview
PVC extrusion is a continuous manufacturing process where PVC resin is melted, shaped through a die, and cooled to form a rigid or flexible profile.
It is ideal for high-volume, consistent, and customizable production.
How PVC Extrusion Works
PVC powder/blend is fed into an extruder.
The screw conveys and melts the material.
Melted PVC is pushed through a die that defines the profile shape.
The hot extrudate enters a vacuum calibration tank for shaping.
Cooling tanks stabilize and harden the profile.
A haul-off machine pulls the product continuously.
Cutting machines cut the extruded product to length.
QC inspection and packaging follow.
Because the process is continuous, PVC extrusion is extremely efficient and highly suitable for long profiles and tubes.
4. PVC Extrusion Process Step-by-Step
Below is the step-by-step industrial workflow used in SW’s PVC extrusion factory:
Step 1: Material Preparation
PVC resin + additives (stabilizers, lubricants, impact modifiers, fillers) are mixed in a high-speed mixer.
Step 2: Feeding
The dry blend enters the extruder hopper through vacuum loaders.
Step 3: Plasticizing
Screws inside the extruder heat and melt the PVC material.
Step 4: Extrusion Through Die
The molten PVC is shaped through a precision die designed specifically for each custom profile.
Step 5: Calibration
Using vacuum calibration tables to ensure:
precise dimensions
straightness
smooth surface
Step 6: Cooling
Water cooling tanks fully solidify the PVC extrudate.
Step 7: Haul-off (Puller)
Ensures stable pulling speed and consistent wall thickness.
Step 8: Cutting
Automatic cutters cut products to customer’s required lengths.
Step 9: QC Inspection
Dimensional checks, impact tests, surface inspection.
Step 10: Packaging
Film wrapping, carton packaging, palletizing.
SW uses:
advanced twin-screw extruders
laser gauge dimension control
CNC die design
ISO-certified QC processes
This ensures consistency across every batch.
5. Common PVC Extrusion Products and Their Uses
PVC extrusion enables thousands of different shapes. Here are the most common product categories:
1. PVC Pipes and Tubes
Used for:
drainage
conduit
irrigation

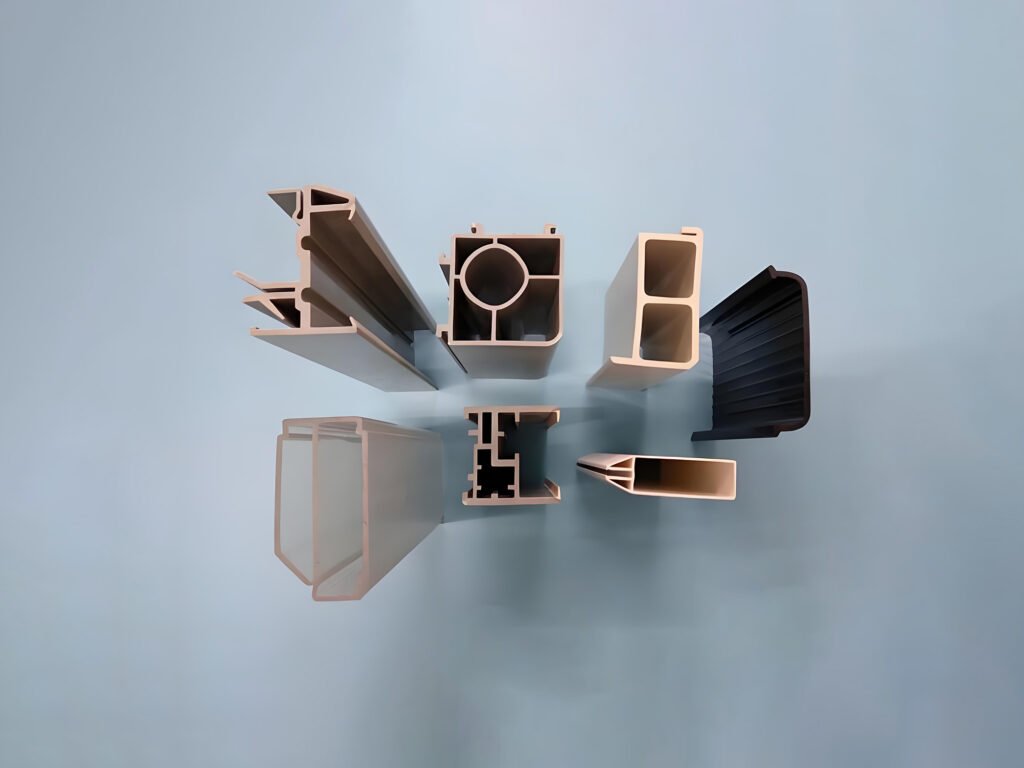

2. PVC Profiles
Used for:
windows & doors
trims

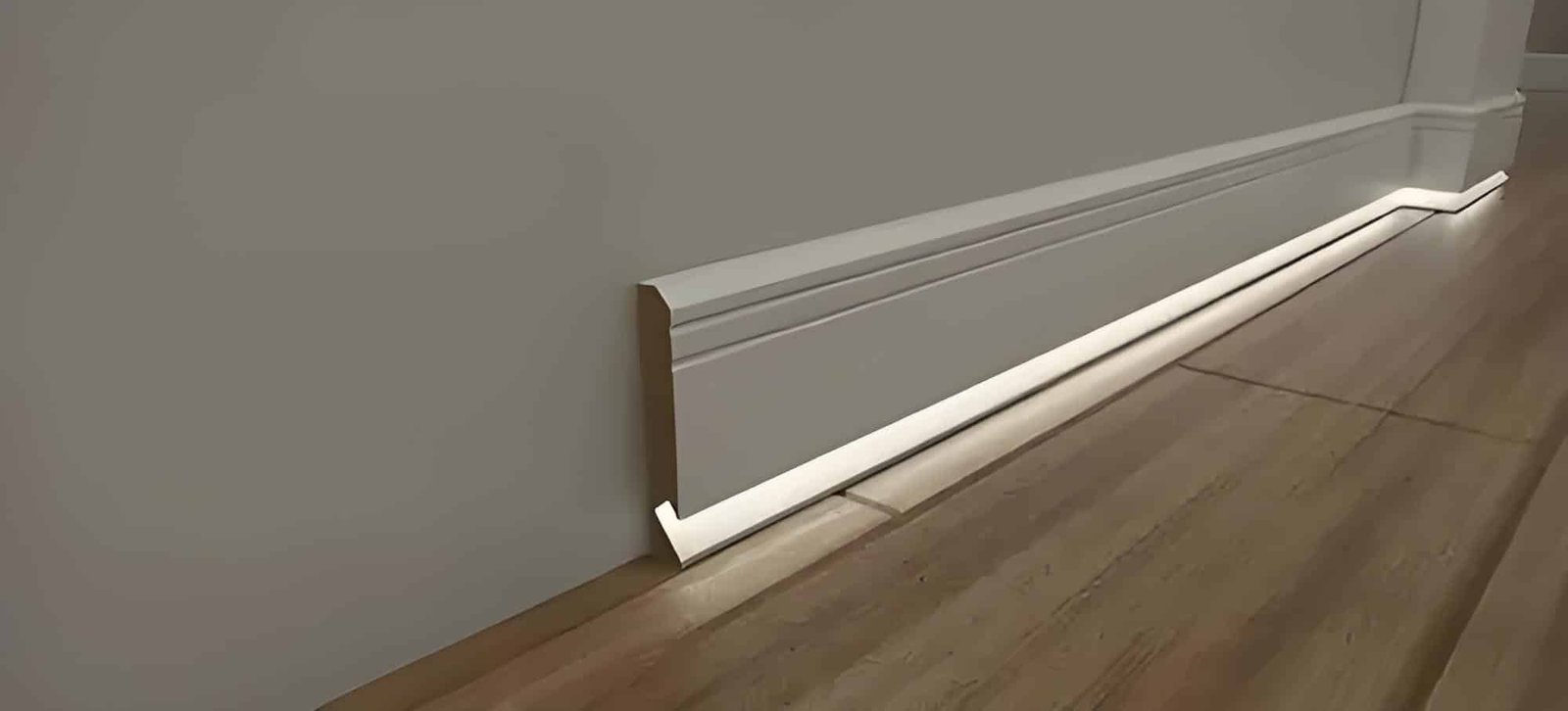

skirting boards
partition frames
3. PVC Cable Trunking
For electrical cable management.
4. PVC Panels
For wall and ceiling decoration.
5. PVC Sealing Strips
Used in:
windows
doors
refrigerators
6. PVC Edging Strips
For furniture and panel finishing.
7. PVC Corner Guards
For construction safety and protection.
8. PVC Anti-slip Strips
Used on stairs, pools, and floors.
SW can produce custom PVC extrusion shapes in any geometry, thickness, or color required.
6. Applications of PVC Extrusion Across Industries
PVC extrusion is used in almost every major industry:
Construction
wall panels
conduits
trims
guards
window profiles
Electrical
cable trunking
conduit pipes
insulation tubing
Automotive
interior trims
sealing strips
protective channels
Furniture
edge bands
decorative profiles
HVAC
ducting
insulation tubes
Consumer Products
toys
household appliance covers
organizational products
7. Advantages of PVC Extrusion
PVC extrusion offers many benefits compared to other materials and processes:
1. Cost-effective
Low material and processing cost.
2. High Customizability
Shapes, dimensions, colors adjusted easily.
3. Long Product Length Capability
Ideal for continuous products like pipes and profiles.
4. Durable & Weather Resistant
Can last 20–50 years depending on application.
5. Excellent Chemical Resistance
Suitable for chemicals, wastewater, fertilizers.
6. Flame Retardant
Self-extinguishing properties increase safety.
7. Recyclable
PVC can be reground and reused.
8. High Production Efficiency
Low waste, stable throughput.
8. How to Choose the Right PVC Extrusion Product
When selecting PVC extrusion products, consider the following:
1. Application Environment
Indoor? Outdoor? Chemical exposure?
2. Mechanical Requirements
Do you need high impact resistance or rigidity?
3. Temperature Conditions
Choose CPVC for high-temperature use.
4. UV Stability
Outdoor products require UV stabilizers.
5. Fire Retardancy
Special formulations available.
6. Color & Surface Finish
Glossy, matte, embossed, or textured.
7. Dimensional Accuracy
Critical for interlocking or sealing profiles.
SW provides professional engineering support to help customers select the ideal PVC formulation and extrusion structure.
9. How SW Produces High-Quality PVC Extrusions
SW uses a fully integrated production system:
Twin-screw extruders for stable melting
Digital temperature control for precision
Laser measurement for dimensional accuracy
CNC machined dies for custom profiles
Strict QC protocol (ISO grade)
20+ years of formulation experience
SW specializes in custom PVC extrusion manufacturing, creating products tailored to brand specifications.
10. PVC Extrusion Technical Considerations
PVC extrusion requires careful control of:
1. Temperature Profile
Overheating can degrade PVC.
2. Screw Speed
Affects plasticizing and surface quality.
3. Die Design
Crucial for shaping and dimensional consistency.
4. Cooling Rate
Too fast = warping
Too slow = deformation
5. Vacuum Calibration
Controls outer dimensions and straightness.
SW’s technicians adjust parameters in real time to guarantee stability.
11. Quality Control in PVC Extrusion
A professional PVC extrusion factory like SW performs:
dimensional testing
impact resistance testing
color consistency checks
hardness measurements
thermal aging tests
chemical resistance tests
batch traceability logging
Quality is monitored throughout the entire production cycle.
12. Common Problems & Solutions in PVC Extrusion
| Problem | Cause | Solution |
|---|---|---|
| Yellowing | Overheating | Lower temperature, improve cooling |
| Warping | Uneven cooling | Adjust vacuum tank & pulling speed |
| Rough Surface | Poor lubrication | Add lubricants or adjust screw speed |
| Uneven Wall Thickness | Unstable puller | Stabilize line speed |
| Bubbles or Voids | Moisture | Pre-dry raw materials |
SW uses automated monitoring systems to minimize these issues.
13. How to Select a Reliable PVC Extrusion Factory
When choosing a PVC extrusion manufacturer, consider:
✔ Experience (minimum 10+ years)
SW has 20 years of extrusion experience.
✔ Production Technology
Look for twin-screw extruders + precision dies.
✔ Customization Capability
SW provides full engineering customization.
✔ Quality Assurance System
ISO, RoHS, REACH compliance.
✔ Material Knowledge
Ability to design PVC formulations in-house.
✔ Global Export Experience
SW supplies customers worldwide.
✔ Competitive Pricing
High production efficiency lowers unit cost.
14. Why SW Is the Best Partner for PVC Extrusion
SW stands out because of:
✔ 20 Years of PVC Extrusion Expertise
Serving construction, electrical, furniture, and industrial markets.
✔ Full In-House Production
Mixing → Extrusion → Cutting → QC → Packaging.
✔ Advanced Machinery
German twin-screw extrusion lines, CNC dies.
✔ Strong Customization Capability
Custom colors, shapes, hardness, material formulas.
✔ Fast Prototyping
Rapid die development & trial extrusion.
✔ Strict Quality Control
Zero-defect philosophy.
✔ Competitive Factory Pricing
Direct-from-manufacturer cost advantages.
✔ Reliable Global Supply
Stable production scheduling, fast lead time.
15. Future Trends in PVC Extrusion
PVC extrusion continues to evolve with:
1. Green Formulations
Lead-free and low-VOC stabilizers.
2. Energy-Efficient Production
Smart heating and cooling systems.
3. Complex Multi-Material Co-Extrusion
Hard + soft PVC in one profile.
4. Recycled PVC Integration
Sustainable manufacturing.
SW actively invests in advanced extrusion technologies and sustainable PVC formulations to stay ahead of market demand.
PVC extrusion is an essential manufacturing technology
PVC extrusion is an essential manufacturing technology behind countless industrial, commercial, and household products. With outstanding material versatility, cost efficiency, and customizability, PVC extrusion will continue to play a major role across multiple industries.
As a professional PVC extrusion factory with 20 years of manufacturing experience, SW provides:
high-precision custom PVC extrusions
excellent material engineering
advanced production systems
strict QC
reliable global delivery
Whether you need PVC panels, PVC profiles, PVC pipes, PVC trunking, PVC seals, PVC anti-slip strips, or custom-engineered components, SW is the right PVC extrusion manufacturer to support your business.
We have a PVC pipes factory of skilled engineers ready to support you in your product development journey from idea design to production.Any ideas about your product you can contact us freely,and our engineers will get back to you with a quote asap. Whatsapp +86 188 2072 7151
